LED podsvit samostatná dioda 2810 3V 215 MSL-510SW

LED podsvit samostatná dioda 2810 3V 215 MSL-510SW
2,8 x 1,0 x 1,2 mm 120mW

MODEL NAME : MSL-510SW

Manufacturer : UNI

Forward Current (IF): 30mA
Pulse Forward Curren t1 (IFp): 100mA
Reverse Current (IR): 50uA
Reverse Voltage (VR): 5V (mA)
Power Dissipation (PD): 120mW
Operatin Tgemperature (Topr): -30 - + 85 °C
Storage Temperature (Tstg): -40 - + 100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 110°C
Forward Voltage (VF): 3.0-4.0V(20mA)
Luminous Flux (LM): lm (20mA)
Luminous Intensity ( IV ) : 720-1000mcd (20mA)
CRI : °
Viewing angle : 120°

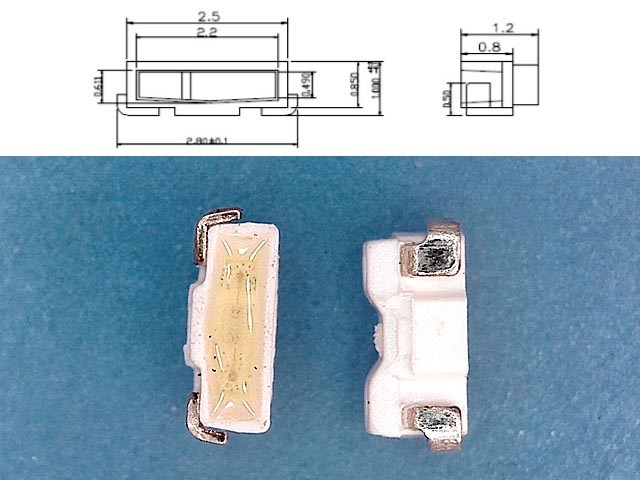

Lead Frame Type LED Package: 2.8×1.0×1.2 mm L×W×H d=mm
