LED podsvit samostatná dioda 3014 3V 0,5W Nichia

LED podsvit samostatná dioda 3014 3V 0,5W Nichia
3,0 x 1,4 x 0,52 mm 0,5W 30LM 5000K

MODEL NAME: NSSW157T LED

Manufacturer: NICHIA

Forward Current (IF): 150mA
Pulse Forward Curren t1 (IFp): 200mA
Reverse Current (IR): 85mA
Reverse Voltage (VR): 0.8-1.2V (5mA)
Power Dissipation (PD): 510mW
Operatin Tgemperature (Topr): -40 - +100 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 120°C
Forward Voltage (VF): 3.1V (80mA)
Luminous Flux (LM): 26lm (80mA)
Luminous Intensity (IV): 8.5cd (80mA)
Color Correlated Temperature (CCT): 5000k
CRI: 80°
Viewing angle: 120°

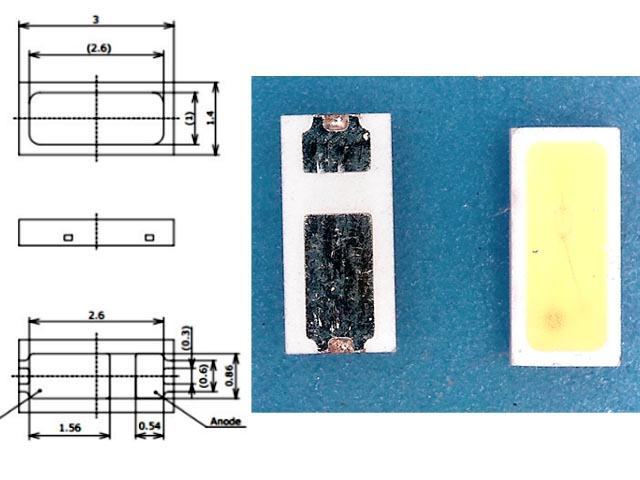

Lead Frame Type LED Package: 3.0×1.4×0.52mm L×W×H d=2.6mm
