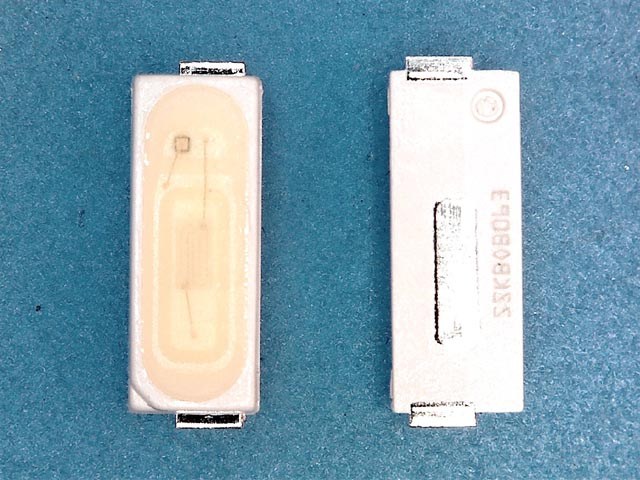

LED podsvit samostatná dioda 5620 3V DS

LED podsvit samostatná dioda 5620 3V DS
5,6 x 2,0 x 0,9 mm

MODEL NAME: SSWH5620

Manufacturer: DS

Forward Current (IF): 150mA
Pulse Forward Curren t1 (IFp): 300mA
Reverse Current (IR): uA
Reverse Voltage (VR): V (mA)
Power Dissipation (PD): mW
Operatin Tgemperature (Topr): -40 - +85 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering:260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 110°C
Forward Voltage (VF): 3.0-3.3V (110mA)
Luminous Flux (LM): 25lm (110mA)
Luminous Intensity ( IV ): mcd (120mA)
Color Correlated Temperature (CCT): 10000-20000K
CRI : 80°
Viewing angle : 120°
Lead Frame Type LED Package: 5.6×2.0×0.9 mm L×W×H d=mm
