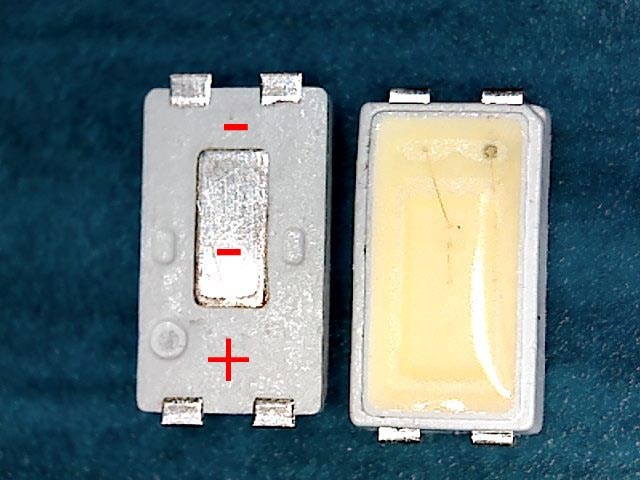

LED podsvit samostatná dioda 5630 0.5W 3V Samsung
5,6 x 3,0 x 0,8 mm 0,5W 3,0V
MODEL NAME: SPBWH1532S1ZVCBIB
Manufacturer: SAMSUNG
Forward Current (IF): 180mA
Pulse Forward Curren t1 (IFp): 300mA
Reverse Current (IR):uA
Reverse Voltage (VR):0.7-1.2V (5mA)
Power Dissipation (PD): 0.5 W
Operatin Tgemperature (Topr): - 40 +85C °
Storage Temperature (Tstg): -40 - +120 C °
Soldering Temperature (Tsld):
Reflow Soldering: 260 °C for 10secs
Hand Soldering: 350C °C for 3secs
Junctio Tnemperature (Tj ): °C
Forward Voltage (VF): 2.7-3.2V (65mA)
Luminous Flux (LM): 28.5-30.5LM (65mA)
Wavelength (nm): nm (65 mA)
Emissions-farbe Color of Emission :
Color Correlated Temperature (CCT): K
CRI: 80°
Viewing angle: 120°
