LED podsvit samostatná dioda 2323 3V Samsung

LED podsvit samostatná dioda 2323 3V Samsung
0,5W 80LM 4000K

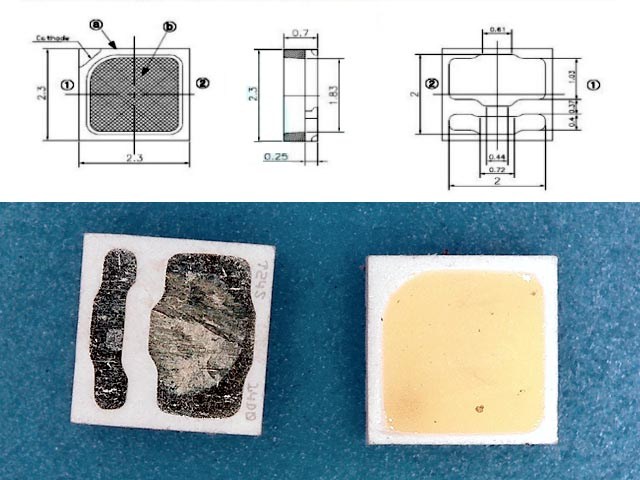

MODEL NAME: SPMWHT221MD5WAT0S0 2323 LED

Manufacturer: SAMSANG

Forward Current (IF): 150mA
Pulse Forward Curren t1 (IFp): 300mA
Reverse Current (IR): 5mA
Reverse Voltage (VR): 0.7-1.2V (mA)
Power Dissipation (PD): W
Operatin Tgemperature (Topr): -40 +85C°
Storage Temperature (Tstg): -40 - +100 C°
Soldering Temperature (Tsld): Reflow Soldering: 260 C° for 10secs
Hand Soldering: 350C° for 3secs
Junctio Tnemperature (Tj ): 110C°
Forward Voltage (VF): 2.8-2.9V (65mA)
Luminous Flux (LM): 23.56-27.09 LM ( 65mA)
Luminous Intensity (IV): mcd (65mA)
Color Correlated Temperature (CCT): 4000 K
CRI: 80°
Viewing angle: 120°
