LED podsvit samostatná dioda 3020 3V UNI MSL-2995W

LED podsvit samostatná dioda 3020 3V UNI MSL-2995W
3,0 x 2,0 x 1,3 mm 0,12W

MODEL NAME: MSL-299SW 3020 LED

Manufacturer: UNI

Forward Current (IF): 30mA
Pulse Forward Curren t1 (IFp): 100mA
Reverse Current (IR): 50uA
Reverse Voltage (VR): 5V (mA)
Power Dissipation (PD): 120mW
Operatin Tgemperature (Topr): -30 - + 85 °C
Storage Temperature (Tstg): -40 - + 100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 110°C
Forward Voltage (VF): 3.0-3.5V(20mA)
Luminous Flux (LM): lm (20mA)
Luminous Intensity (IV): 1800-2200mcd (20mA)
Color Correlated Temperature (CCT):
CRI: °
Viewing angle: 120°

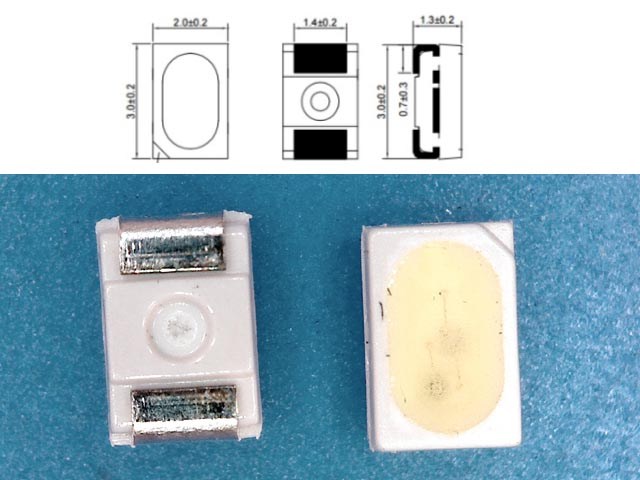

Lead Frame Type LED Package: 3.0×2.0×1.3 mm L×W×H d=mm
