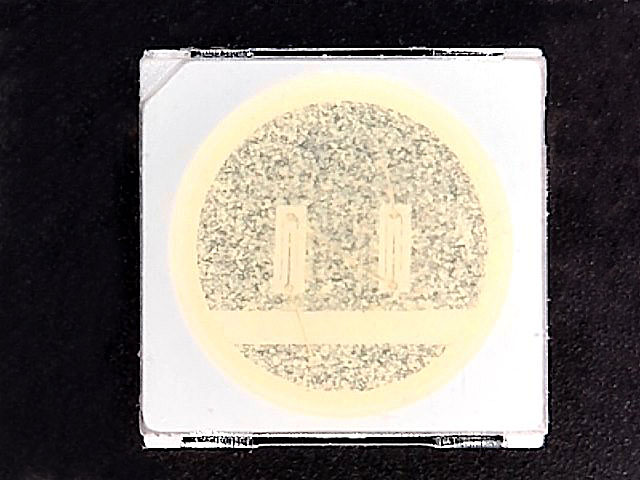

LED podsvit samostatná dioda 3535 2W 6V LG
3,5 x 3,5 x 0,6mm 2,0W 6,0V
Kód zboží:
4300016100
Výrobce:
LG
EAN:
Dostupnost:
Hlavní sklad:
ihned k odeslání
na prodejně > 25 ks
Cena bez DPH:
19,36 Kč
Cena s DPH:
23,43 Kč
Lze objednat jen 27 ks
MODEL NAME : LATWT391RZLZK

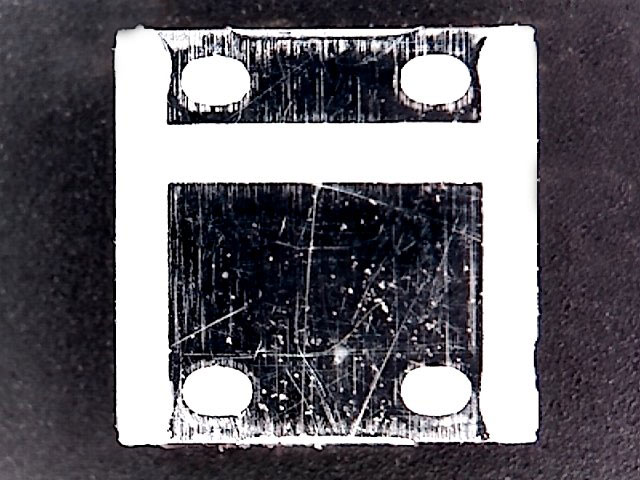

Velká ploška: Anoda +
Malá ploška : Katoda -
Manufacturer : LG Innotek LED
Forward Current (IF): 500mA
Pulse Forward Curren t1 (IFp): 800mA
Reverse Current (IR): 50mA
Reverse Voltage (VR): 0.7-1.2V (5mA)
Power Dissipation (PD): 2.1W
Operatin Tgemperature (Topr): -40 - +85 ° C
Storage Temperature (Tstg): -40 - +100 ° C
Soldering Temperature (Tsld):
Reflow Soldering: 260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 162.5 °C
Forward Voltage (VF): 6.0-6.8V (250mA)
Luminous Flux (LM): 150lm (250mA)
Luminous Intensity ( IV ): 49cd (250mA)
Wavelength (nm) : -nm mA
CIE : x=0.263 y=0.224 (250mA)
Color Correlated Temperature (CCT):
CRI: 72
Viewing angle: 120°
