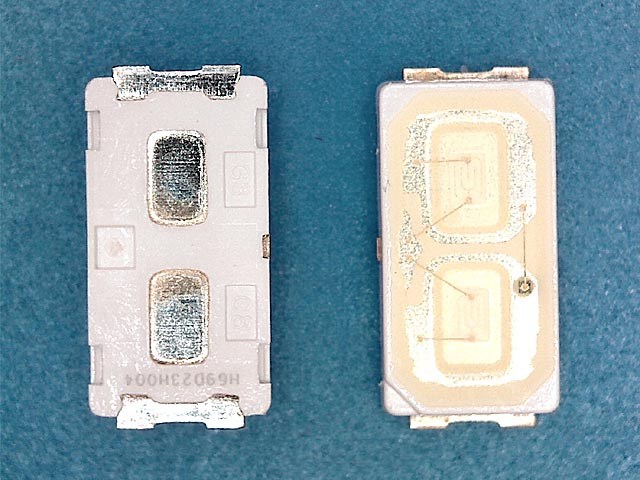

LED podsvit samostatná dioda 6030 6V 0,5W LG

LED podsvit samostatná dioda 6030 6V 0,5W LG
6,0 x 3,0 x 0,8 mm 0,5W 40Lm

MODEL NAME: AOT-6030C-W 6030 LED

Manufacturer: AOT

Forward Current (IF): 150mA
Pulse Forward Curren t1 (IFp): 240mA
Reverse Current (IR): 50uA
Reverse Voltage (VR): 5V (mA)
Power Dissipation (PD): 0.6W
Operatin Tgemperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 120°C
Forward Voltage (VF): 3.0-3.2V(120mA)
Luminous Flux (LM): 40-50lm (120mA)
Luminous Intensity ( IV ): mcd (120mA)
Color Correlated Temperature (CCT): K
CRI: 80°
Viewing angle: 120°
Lead Frame Type LED Package: 6.0×3.0×0.8 mm L×W×H d=mm
