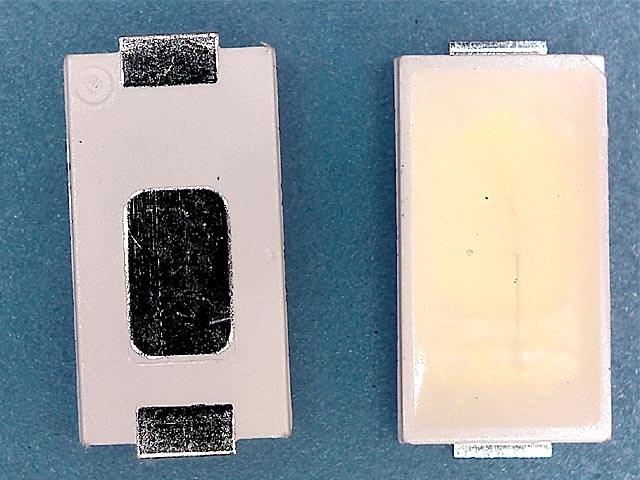

LED podsvit samostatná dioda 6030 6V 1W LG
Akce -74%
6,0 x 3,0 x 0,8 mm 1W
Kód zboží:
4300030600
EAN:
Dostupnost:
Hlavní sklad:
ihned k odeslání
na prodejně > 25 ks
Běžná cena:
11,5 Kč
Akční cena s DPH:
3,03 Kč
Lze objednat jen 600 ks
MODEL NAME: LATHT420MPLZB
Manufacturer: LG Innotek LED
Forward Current (IF): 140mA
Pulse Forward Curren t1 (IFp): 260mA
Reverse Current (IR): uA
Reverse Voltage (VR): 0.6-1.2V (5mA)
Power Dissipation (PD): 980mW
Operatin Tgemperature (Topr): -30 - +85 °C
Storage Temperature (Tstg): -40 - +100 °C
Soldering Temperature (Tsld): Reflow Soldering: 260 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 110°C
Forward Voltage (VF): 5.8-7.0V(93mA)
Luminous Flux (LM): -lm (93mA)
Luminous Intensity (IV): 15-26cd (93mA)
Color Correlated Temperature (CCT): 8500-30000K
CRI: 80°
Viewing angle: 120°
Lead Frame Type LED Package: 6.0×3.0×0.8 mm L×W×H d=6.0mm
